Description:

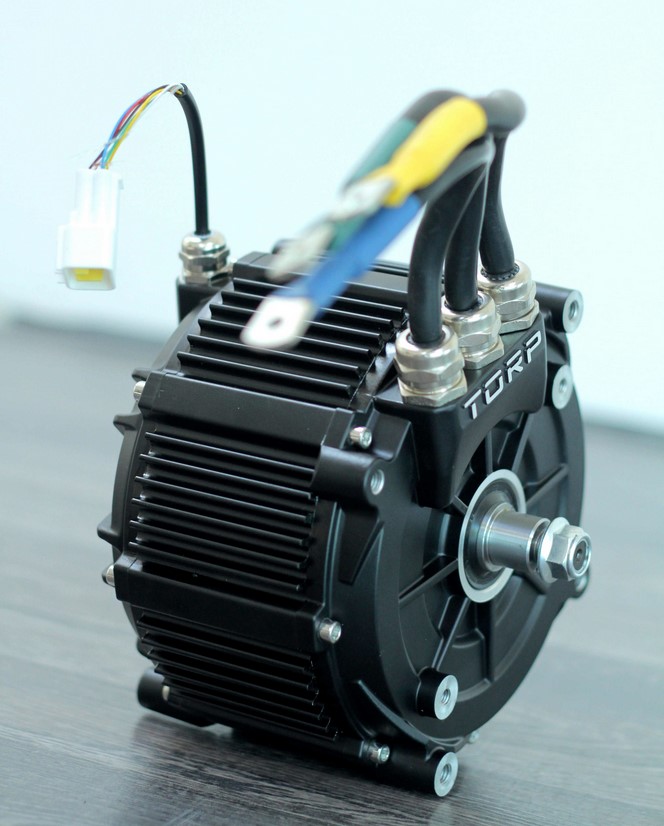

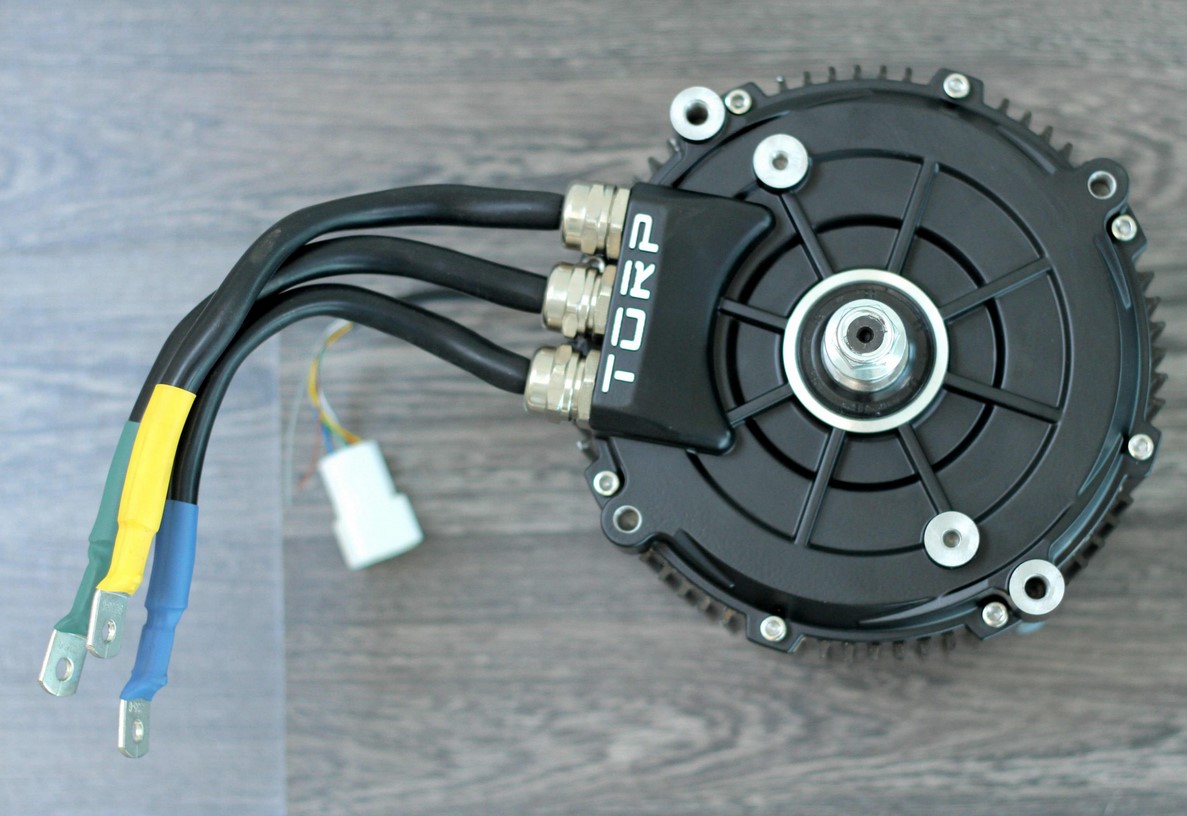

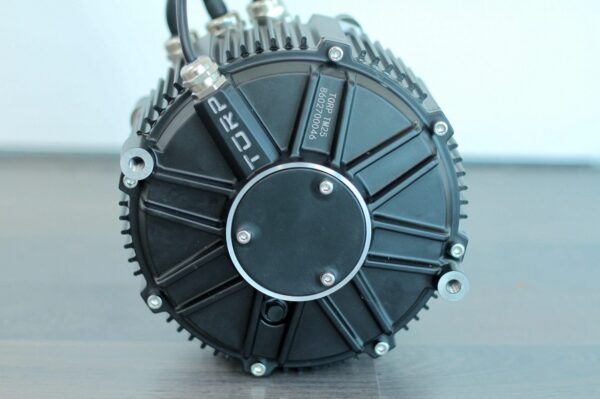

- What makes the TM25 engine unique?
- Different mounting points allow use with other electric motors
- Works with Hall sensors and encoder, making it compatible with a variety of controllers
- It has 3 times less drag compared to the stock Sur-Ron engine.

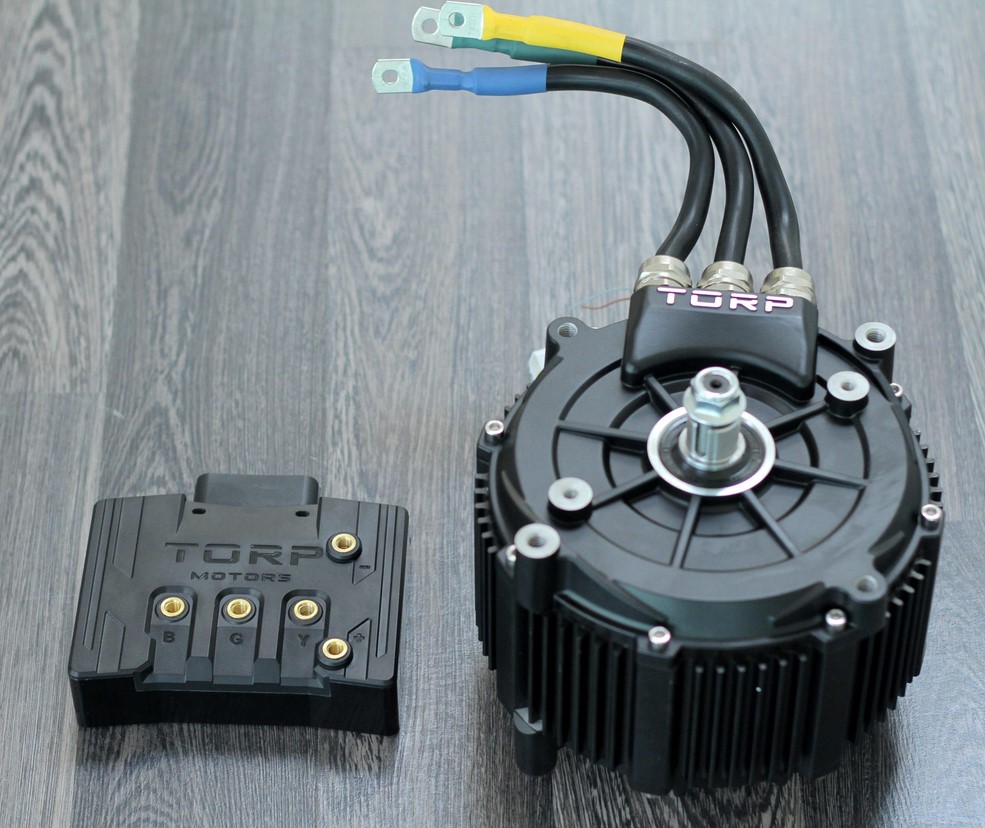

- It is compatible with both TC500* and TC1000 controllers.
*IMPORTANT: The TM25 motor is NOT COMPATIBLE with the Torp TC500 HW 1.0, 1.1 and 1.2 controllers. If you own one of these versions and would like to purchase a TM25 motor, please contact us directly.
Technical specifications:
- In the case of the TM25 model, it can be used for all engine types:
- Engine type: IPM
- Voltage: 48V – 120V
- Continuous power: 13 kW
- Top performance:
at 72V – 27 kW
at 80V – 31 kW
at 120V – 40 kW
- Rated speed: 6000 rpm
- Maximum speed: 10000 rpm
- Position sensor: Hall effect sensor or encoder
- Sensor points: 1024 (4096)
- Maximum magnet temperature: 150 C
- Phase current: up to 700 A
- Constant Kt [Nm/A]: 0.105
- Torque 500 A: 52.5 Nm
- Torque 700 A: 67 Nm
- Rated KV output: 85
- Motor resistance: 3.4 mO
- Temperature sensor: 1.5 MO PT1000
- Efficiency: up to 95%
- Protection Class: 1: PROTECTION: IP67
- Weight: 10 kg
- Motor size: 115*165 mm
- Installation.
- Number of pole pairs: 5
- Cooling method: air
